Eco Modular Series Unit (ECO-MOD)

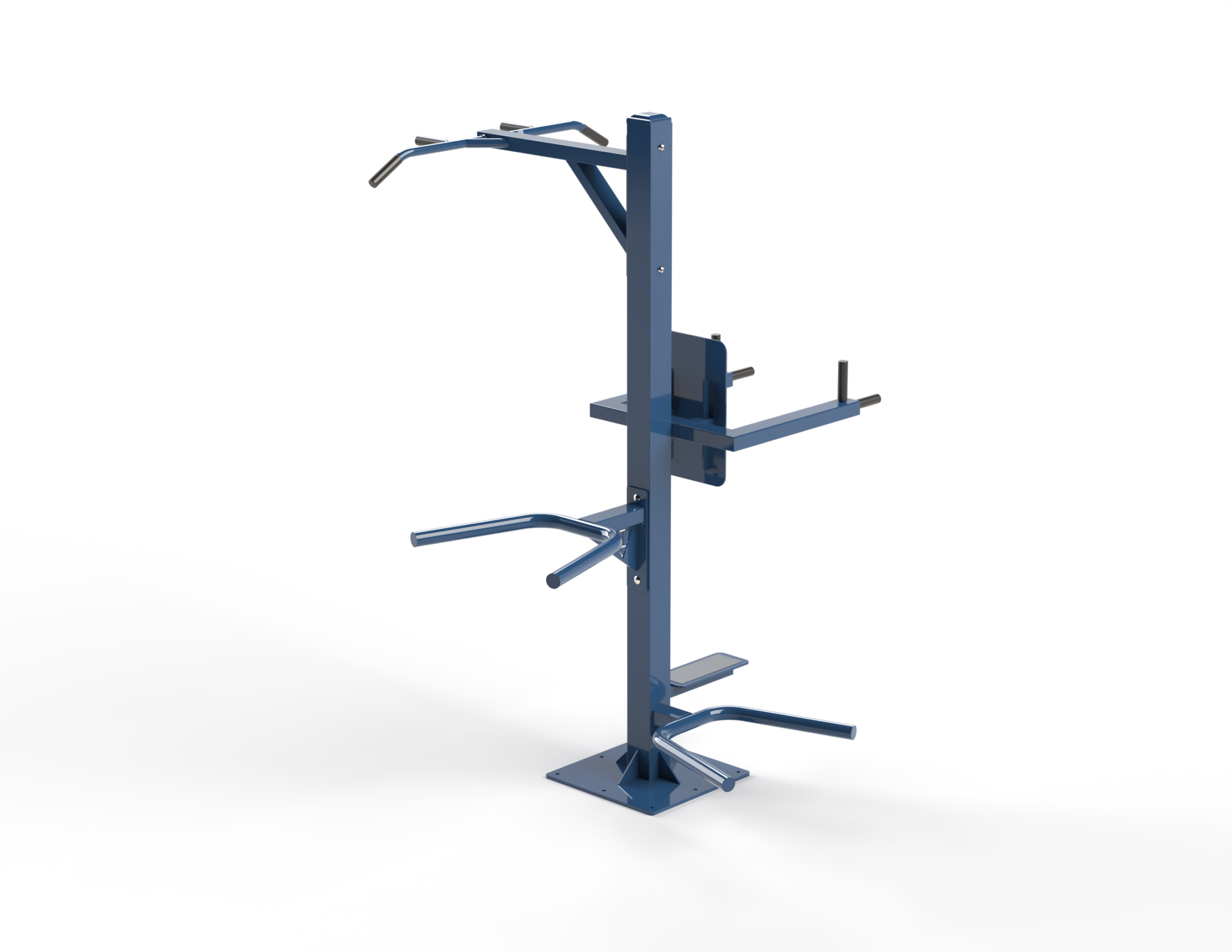

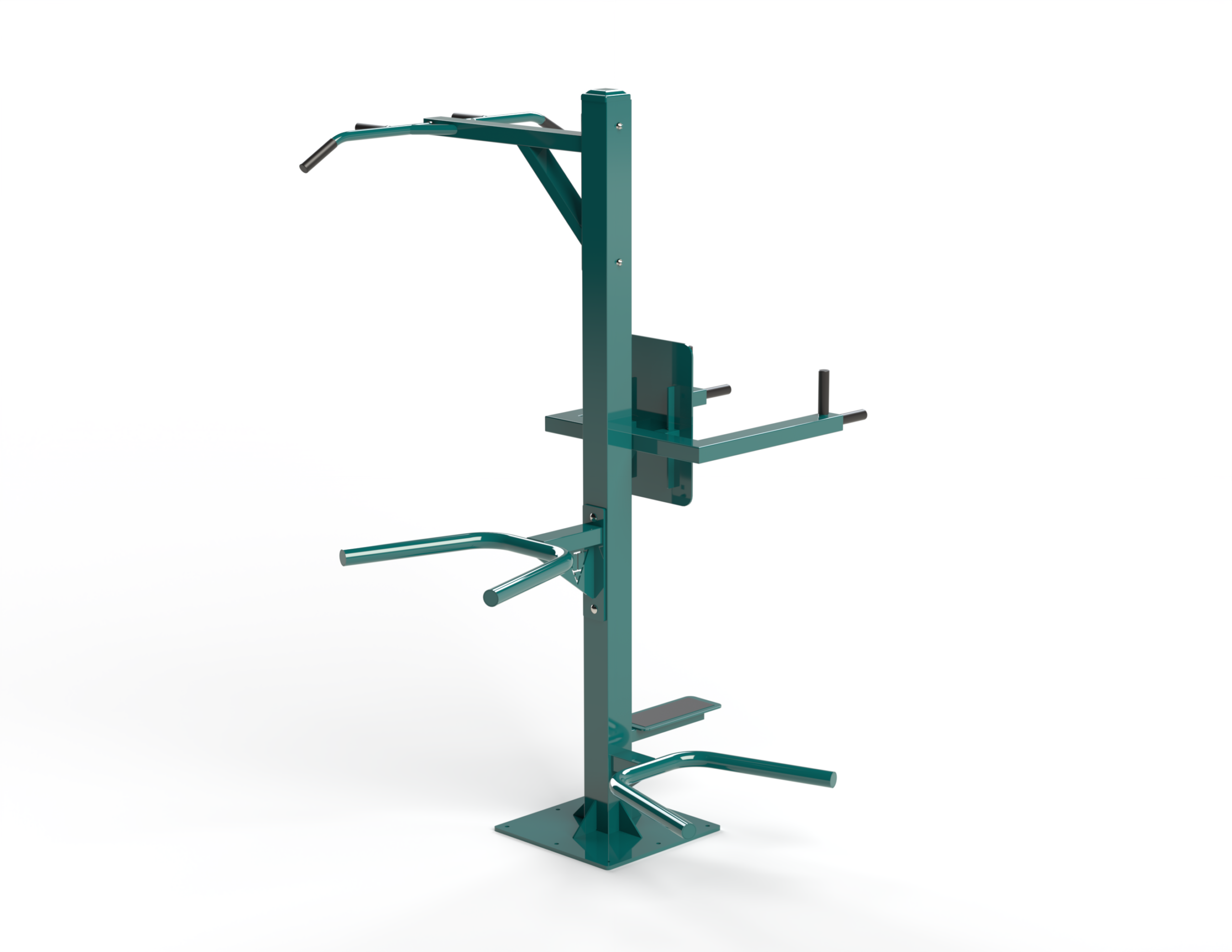

Meet the Eco Modular Series, the most streamlined member of our Modular family, accommodating 4 users simultaneously and combining multiple exercises into one small footprint. The 4 stations included are a Pull-Up station with varying levels of difficulty, a dip and knee raise station focusing on triceps and core strengthening, a Dip station targeting the triceps, chest, and shoulders, and a Push-Up station. Stripped down to pure bodyweight training with no seats, pads, or moving parts, the ECO-MOD is crafted with high-gauge steel and designed to withstand the most abusive environments and all weather conditions. If you want the Modular Series experience at the smallest footprint and the most economical price point, this is the solution for you.

Meet the Eco Modular Series, the most streamlined member of our Modular family, accommodating 4 users simultaneously and combining multiple exercises into one small footprint. The 4 stations included are a Pull-Up station with varying levels of difficulty, a dip and knee raise station focusing on triceps and core strengthening, a Dip station targeting the […]

Specifications

Actual equipment may look different than shown due to frequent design upgrades. This equipment is designed for individuals weighing up to 330 lbs.

Color

GREEN OR BLUE

Dimensions

72”L X 80”W X 92”H

Weight

300 LBS

Features

Product Specification

TriActive USA’s Modular Series assumes usage of American standard size tubing, namely 4” x 4” square tubing 1/4 wall, 1-1/2” x 3” rectangular tubing x 11ga, 3×2 Rectangle Tube 11ga, 1-1/4” OD round tubing x 11ga, 1-1/2” x 1-1/2” square tubing x 11ga, 1⁄4” hot rolled flat bar, and 11ga carbon steel sheet metal. TriActive USA Fitness Equipment does not include any of the following: exposed cables, hydraulics or plastic seating.

Powder Coating Specification

Powder coating thickness 6-8 mils. Coatings are tested for 1000 hours of salt spray resistance. Pre- treated, iron phosphate applied, zinc powder applied, functional powder applied, and final TGIC powder coat is applied to provide outstanding weathering capabilities.
