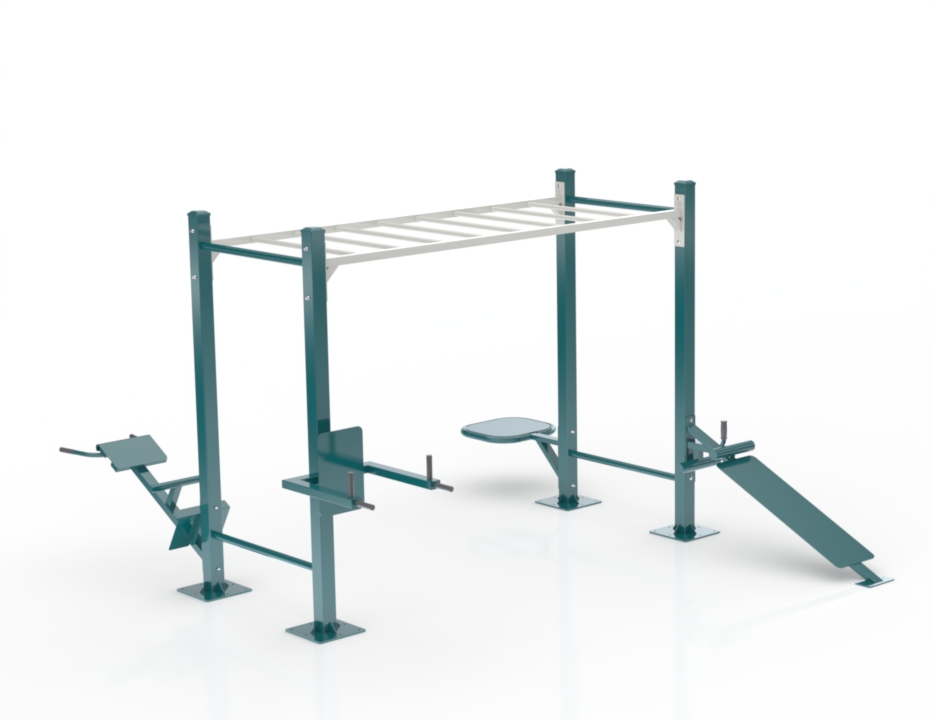

Horizontal Ladder Modular Series (HLAD-MOD)

Merging two of our most popular platforms, the Horizontal Ladder Modular Series builds a full circuit of Modular Series stations directly onto our Horizontal Ladder frame. Maximizing training options without expanding the footprint. The HLAD-MOD accommodates a minimum of 7 users simultaneously, with stations including an overhead horizontal ladder for traversing and grip strength, an inclined sit-up board, a back extension station focusing on the lower back and posterior chain, a sit-up station, a second inclined board for core and upper body work, and lower horizontal bars for step-ups, push-ups, and stretching. Our most efficient use of a single frame yet, designed to deliver a complete body workout no matter the environment or weather conditions.

Merging two of our most popular platforms, the Horizontal Ladder Modular Series builds a full circuit of Modular Series stations directly onto our Horizontal Ladder frame. Maximizing training options without expanding the footprint. The HLAD-MOD accommodates a minimum of 7 users simultaneously, with stations including an overhead horizontal ladder for traversing and grip strength, an inclined sit-up board, a back extension station focusing on the lower back and posterior chain, a sit-up station, a second inclined board for core and upper body work, and lower horizontal bars for step-ups, push-ups, and stretching. Our most efficient use of a single frame yet, designed to deliver a complete body workout no matter the environment or weather conditions.

Specifications

ACTUAL EQUIPMENT MAY LOOK DIFFERENT THAN SHOWN DUE TO FREQUENT DESIGN UPGRADES. THIS EQUIPMENT IS DESIGNED FOR INDIVIDUALS WEIGHING UP TO 330 LBS.

Color

GREEN OR BLUE

Dimensions

139”L X 61”W X 98”H

Weight

672 LBS

Features

Product Specification

The HLAD Modular Series is constructed using American standard-size structural steel components, including 4″ x 4″ square tubing with a 1/4″ wall thickness for the main posts; 3″ x 2″ , 3″ x 1.5″ , and 2″ x 2″ square tubing with a 1/8″ wall thickness for structural arms, supports, gussets, and spacers; Ø2″ round tubing with a .120″ wall thickness for outer edges and supports; and Ø1.25″ round tubing with a .120″ wall thickness for handles and pull-up bars. Construction also incorporates 14″ x 14″ x 1/2″ thick steel base plates, along with 5/16″ , 1/4″ , and 1/8″ thick steel plate components for brackets, gussets, platforms, rests, and end caps. Connections utilize 1/2″-13 18-8 stainless steel square-neck carriage bolts with tamper-resistant breakaway nuts.

Powder Coating Specification

Powder coating thickness 6-8 mils. Coatings are tested for 1000 hours of salt spray resistance. Pre- treated, iron phosphate applied, zinc powder applied, functional powder applied, and final TGIC powder coat is applied to provide outstanding weathering capabilities.
